Azure Private Link

All material sourced from https://learn.microsoft.com/en-us/training/modules/introduction-azure-private-link/.

• Normally, Azure resources find each other using the public internet
• They give three examples:
  • Peered virtual network
  • On-premises network connecting via ExpressRoute
    • Side note: The ExpressRoute documentation specifically says it doesn't go over the public internet?
      • https://learn.microsoft.com/en-us/azure/expressroute/expressroute-introduction
      • "ExpressRoute connections offer more reliability, faster speeds, consistent latencies, and higher security than typical connections over the Internet, because they don’t go over the public Internet."
  • Customer's virtual network that connects to your own company's virtual network
• But access over the public internet may lead to security concerns
• Private Link replaces public endpoints with private network interfaces
  • Think of it as adding both resources that you are trying to connect to the same virtual network
  • But instead of connecting via the public internet, it goes over the Azure backbone network
    • This is called Azure Private Endpoint

Azure Private Endpoint

• Connects virtual networks to Azure services in place of public endpoint
• Charged per hour and per GB of inbound/outbound traffic
• Azure Private Link Service is different from just Private Link (see below)
  • Allows your customers to connect to your Azure services via Private Link and is free

Benefits

• Independent of which Azure virtual network you are part of
• Cross-region, global
• Works regardless of tenancy (on-prem, hybrid, Azure cloud)

How does it work?

• Uses Microsoft Azure backbone instead of internet
• Does this by switching from public to private endpoint

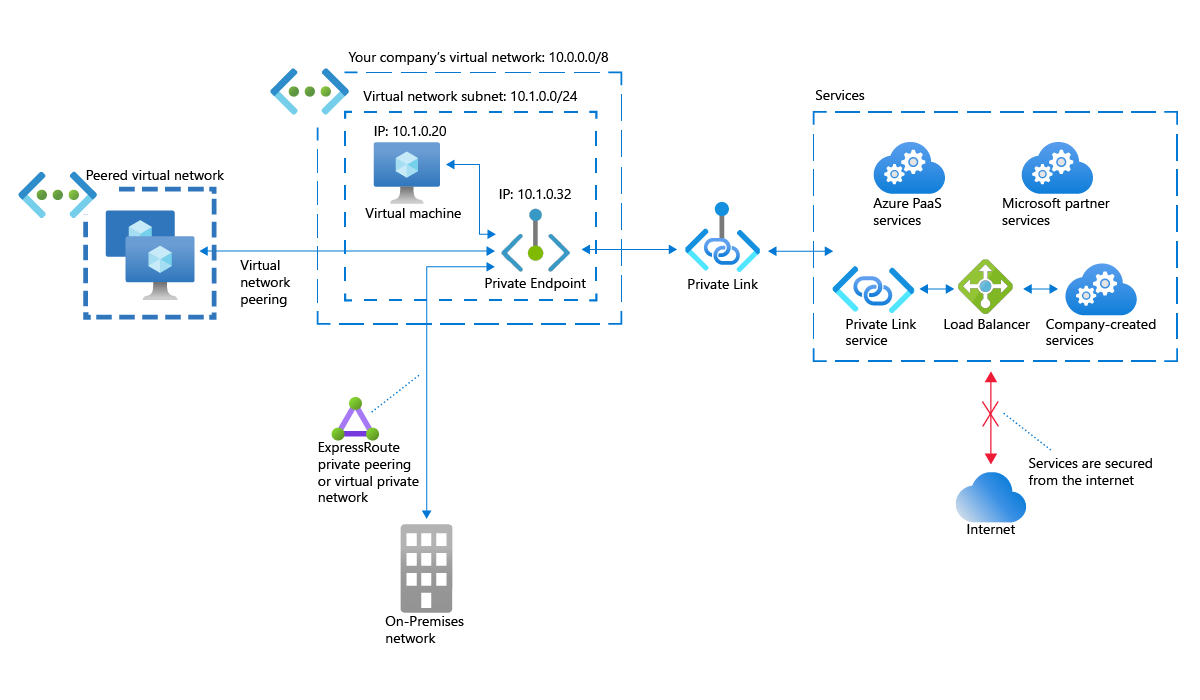

• So add Azure Private Endpoint to network configuration to create private connection between virtual network and specified Azure resource
  • Private Endpoint will use up an unused private IP from a specified subnet in the virtual network
    • Ex. if 10.1.0./24, and 10.1.0.32 isn't used by anyone, will use that address for a specified Azure service
    • Almost like bringing the remote Azure service into the subnet
  • You don't need to use that IP to name the service if you configure it to integrate with your private DNS zone
    • That will let you assign a FQDN (like myazureresource.table.core.windows.net) to that IP and use it for access

Key Points

• Maximum of 1000 Private Endpoint interfaces per virtual network
• Maximum of 64000 Private Endpoint interfaces per Azure subscription
• Maximum of 1000 Private Endpoint interfaces to same Private Link resource
  • Not recommended to map multiple interfaces to a single resource due to potential DNS conflicts
• Connections are one-way, so only clients can connect to an interface
• Deployed interface is read-only and the resource and IP can't be changed

Service Endpoints vs. Private Endpoints

• Service endpoint restricts connections from specific virtual networks, but still happen over public endpoints

Azure Private Link Service

• If you want to serve an Azure app, can hide it behind Private Link for your customers
• Requires Azure Standard Load Balancer to be attached (not Basic)
• Issued an alias with the format prefix.guid.suffix
  • prefix is your custom name
  • guid is global unique ID generated by Azure
  • suffix is \<region>.azure.privatelinkservice with \<region> filled in where the Private Link Service is hosted
• Share alias to allow them to connect

Key Points

• Must be deployed in same region as Azure Standard Load Balancer and the virtual network of the service's host
• Max 800 Private Link Service resources per Azure subscription
• Max 1000 Private Endpoint interfaces to map to a single Private Link Service resource

Private Link Use Cases

• Connect to Azure PaaS offerings in your virtual network
• Secure traffic between company network and Azure cloud
• Disconnect Azure PaaS offerings from the internet
• Access Azure PaaS resources across networks
• Offer private access to Azure services to customers
